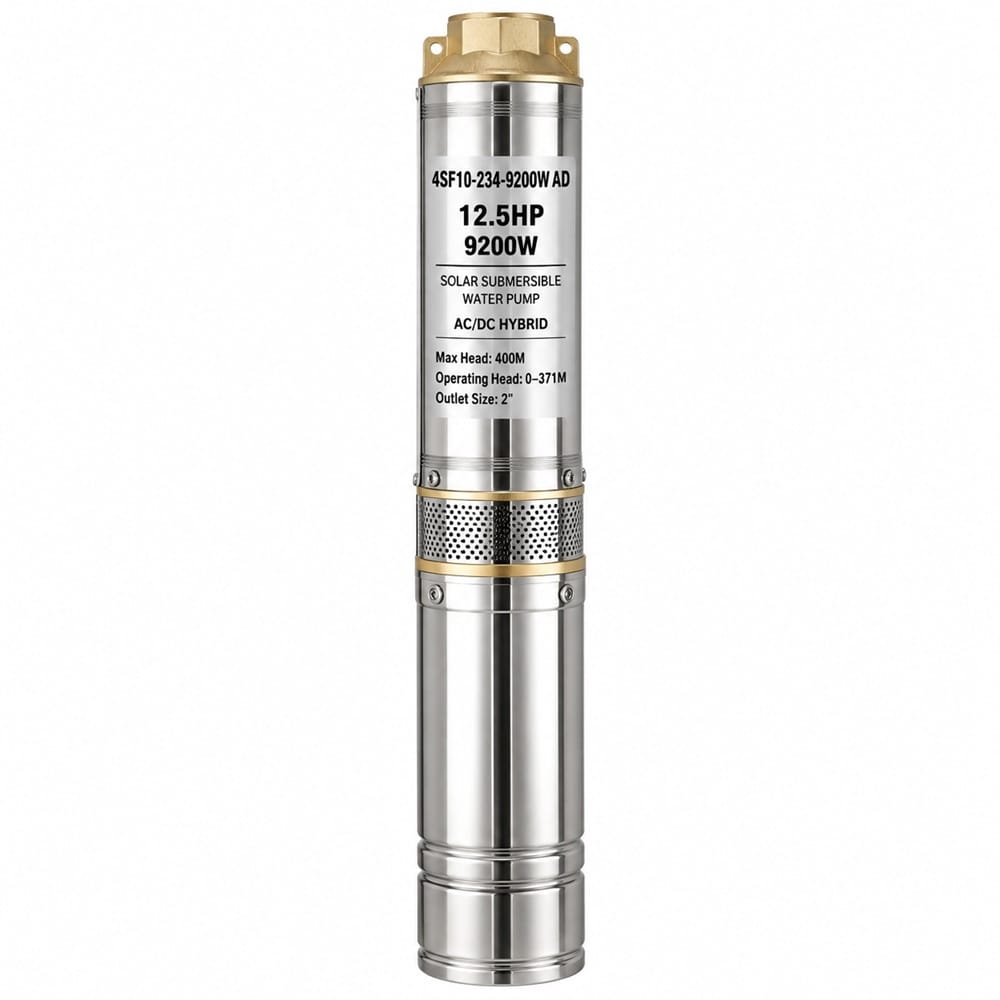

12.5HP Solar Submersible Water Pump 9200W – 400M Head

12.5HP Solar Submersible Water Pump 9200W – 400M Head

The 12.5HP Solar Submersible Water Pump 9200W is designed for deep boreholes and demanding water pumping applications. It delivers powerful performance while using solar energy.

The pump has a maximum head of 400 metres. Therefore, it is a good choice for farms, irrigation projects and commercial water supply systems.

It also supports AC/DC hybrid operation. This gives you more flexibility when choosing your power source.

Powerful 12.5HP Motor

The pump uses a powerful 9200W motor, which is equal to approximately 12.5HP.

Because of its high power, the pump can lift water from deep boreholes. It is also suitable for applications where water needs to travel over a large vertical distance.

High 400M Maximum Head

This pump provides a maximum head of 400 metres.

Its recommended operating head reaches approximately 371 metres. As a result, it is suitable for many deep borehole installations.

However, always check your borehole specifications before choosing a pump. Important details include borehole depth, water level and required pumping head.

AC/DC Hybrid Operation

The 4SF10-234-9200W AD supports both AC and DC power.

Therefore, the pump can be used with a suitable solar system. It can also work with a compatible AC power source when required.

This flexibility makes it useful for farms and remote locations.

Solar Panel Requirements

For solar operation, the recommended configuration is:

• 30 × 450W solar panels
• 2 sets of 15 panels
• Total solar capacity of approximately 13.5kW

The final panel configuration should match the electrical requirements of the pump controller.

2-Inch Water Outlet

The pump comes with a 2-inch water outlet.

Using the correct pipe size helps maintain good water flow. It also reduces unnecessary pressure and friction losses.

Product Specifications

Model: 4SF10-234-9200W AD
Power: 9200W
Horsepower: 12.5HP
Pump Type: AC/DC Hybrid Submersible Pump
Maximum Head: 400M
Operating Head: 0–371M
Outlet Size: 2 Inches
Solar Panels: 30 × 450W
Panel Configuration: 2 × (15 × 450W)
Solar Array: Approximately 13.5kW

Suitable Applications

This 12.5HP solar submersible pump is suitable for:

• Deep boreholes
• Farm irrigation
• Livestock watering
• Water tank filling
• Agricultural projects
• Commercial water supply
• Remote farms
• Off-grid water pumping

Why Choose This Solar Pump?

The pump combines high power, deep pumping capability and flexible AC/DC operation.

In addition, solar operation can reduce dependence on grid electricity. This makes the pump suitable for farms and remote locations.

The 400M maximum head also makes it a strong option for deep borehole projects.

Installation Recommendation

Professional installation is recommended.

Before ordering, confirm your borehole depth, water level and required pumping head. This will help ensure that the pump is correctly sized for your project.

For a complete solar pumping system, the pump should be matched with the correct solar panels, controller, cables, pipes and installation accessories.
