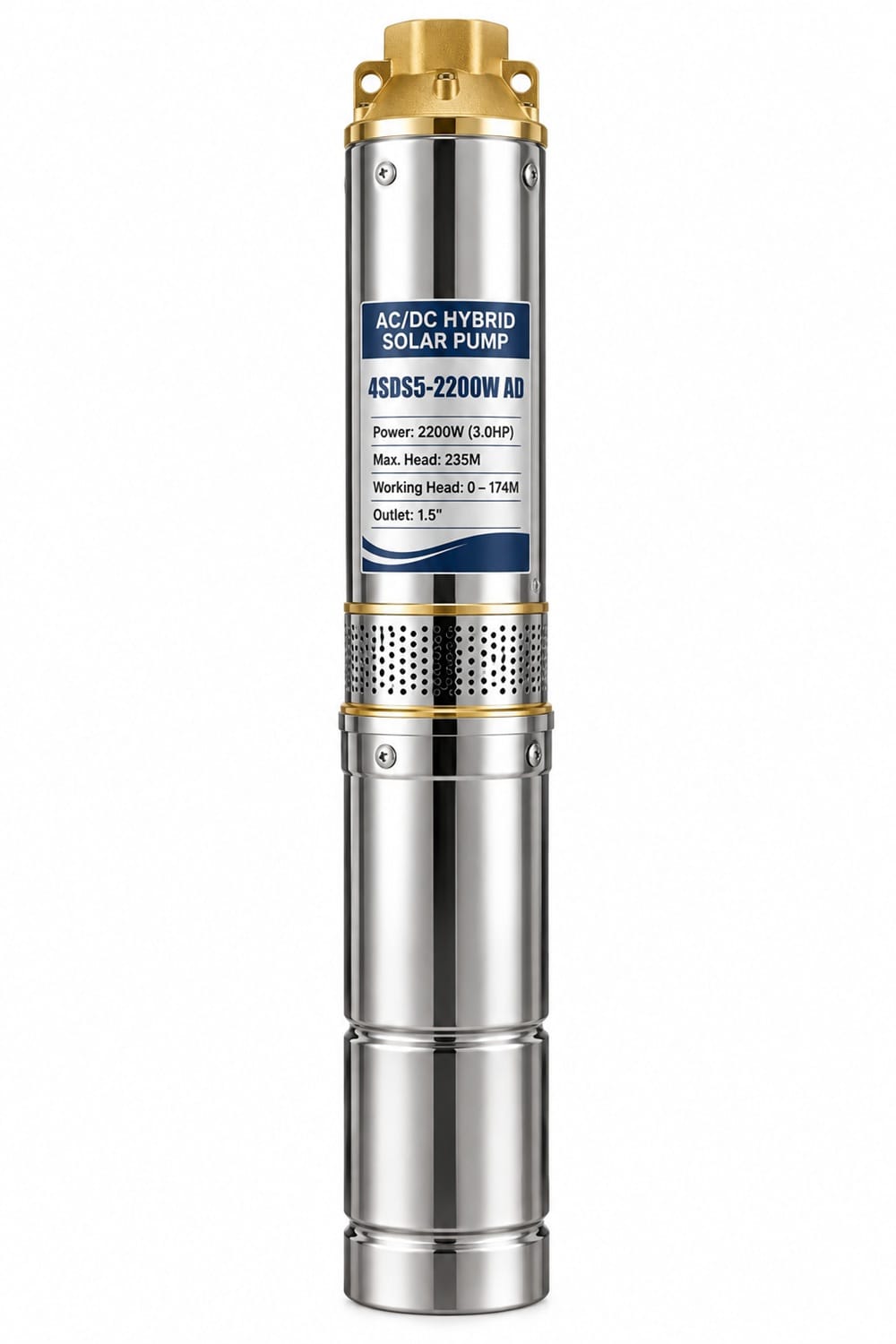

3HP AC/DC Solar Submersible Water Pump 2200W – 235M Head

3HP AC/DC Solar Submersible Water Pump 2200W – 235M Head

The 3HP AC/DC Solar Submersible Water Pump 2200W is a powerful solution for pumping water from deep boreholes and wells. With a maximum head of 235 metres, it is suitable for farms, homes, livestock projects and irrigation systems that require reliable water delivery from significant depths.

AC/DC Hybrid Operation

The pump supports AC and DC power, giving you greater flexibility in areas where grid electricity may be unreliable or unavailable.

During sunny hours, the pump can operate using compatible solar panels. An appropriate AC power source can provide an alternative when solar power is insufficient.

Powerful 2200W Motor

The 2200W (3HP) motor provides the power required for demanding borehole applications. Its high-head design makes it particularly suitable for deep water sources.

Up to 235M Maximum Head

The pump can achieve a maximum head of up to 235 metres, with a specified working head range of 0–174 metres.

Actual water delivery will depend on factors such as installation depth, vertical lift, pipe size, pipe length and system losses.

Recommended Solar Configuration

For solar operation, the specified panel configuration is:

• 6 × 550W solar panels
• Total recommended solar array: 3300W

Correct solar sizing and professional installation are recommended for reliable performance.

1.5-Inch Water Outlet

The pump features a 1.5-inch outlet, allowing connection to appropriately sized delivery pipes for borehole, storage tank and irrigation applications.

Suitable Applications

This 3HP solar submersible pump is ideal for:

• Deep boreholes and wells
• Farm water supply
• Irrigation systems
• Livestock watering
• Filling elevated storage tanks
• Domestic water supply
• Off-grid water pumping projects

Product Specifications

Model: 4SDS5-2200W AD
Pump Type: AC/DC Hybrid Submersible Water Pump
Rated Power: 2200W
Horsepower: 3.0HP
Maximum Head: 235M
Specified Working Head: 0–174M
Outlet Size: 1.5 inches
Recommended Solar Panels: 6 × 550W
Recommended Solar Array: 3300W
Power Supply: AC/DC Hybrid

Why Choose This Pump?

The 4SDS5-2200W AD combines high-head pumping capability with flexible AC/DC operation. It is a strong choice for customers who need to pump water from deep boreholes while taking advantage of solar energy.

For best results, the pump should be correctly sized according to the borehole depth, required pumping head, water demand and installation conditions.
