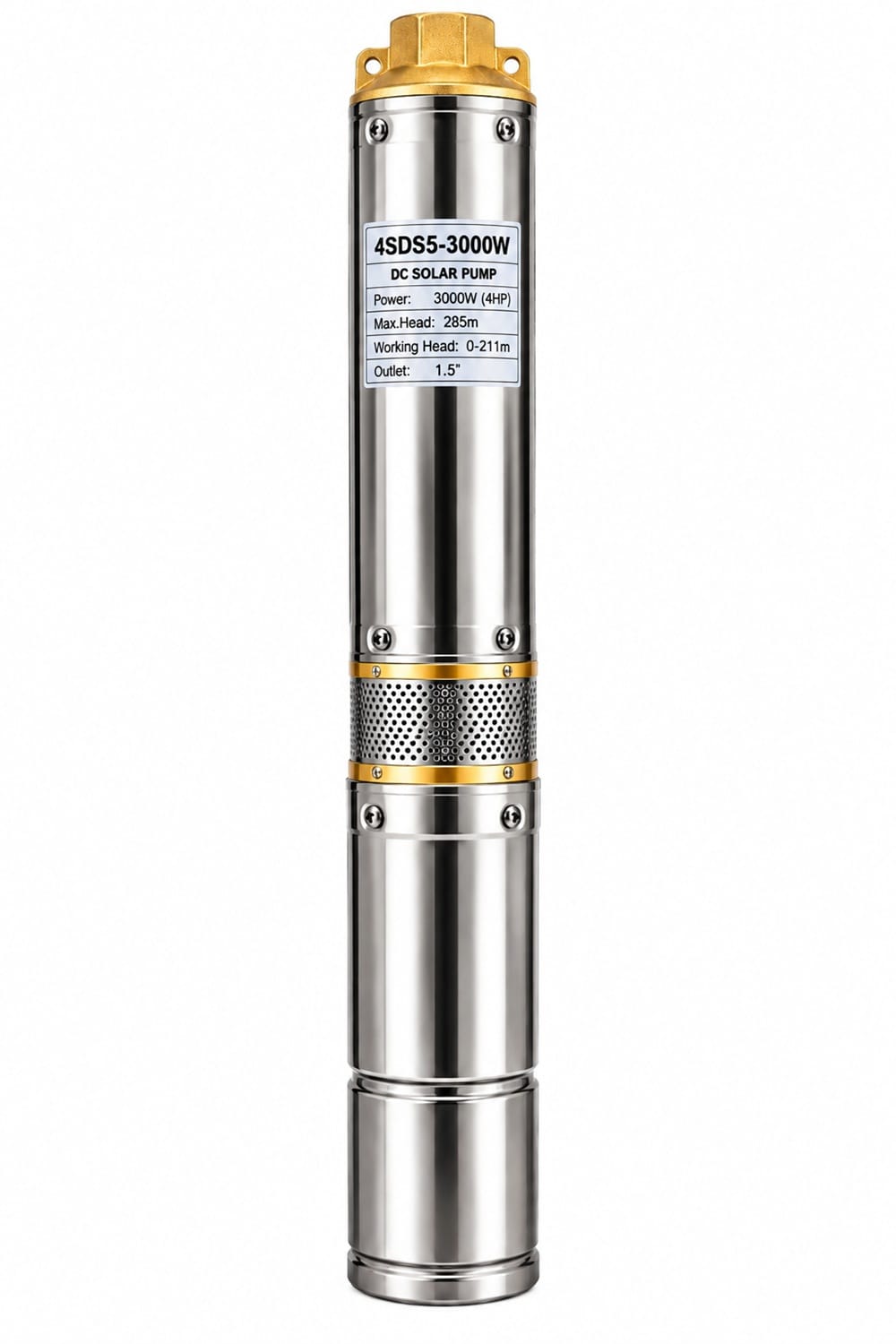

4HP AC/DC Solar Submersible Water Pump 3000W – 285M Head
The 4SDS5-3000W AD AC/DC Solar Submersible Water Pump is a powerful water pumping solution designed for deep boreholes, farms, irrigation systems and water storage applications. With a 3000W (4.0HP) motor and a maximum head of up to 285 metres, this pump is suitable for demanding water supply installations.
AC/DC Hybrid Operation
This pump supports AC and DC power, providing greater flexibility when choosing your power source. It can be used with a suitable solar panel system or compatible AC power supply.
The hybrid design makes it particularly useful in areas where grid electricity is unreliable or where solar energy is the preferred source of power.
High-Head Water Pumping
The pump delivers a maximum head of 285 metres and has a recommended working head range of 0–211 metres. This makes it an excellent choice for deep boreholes and applications where water needs to be pumped over significant vertical distances.
Recommended Solar Configuration
For solar operation, the recommended configuration is:
- 7 × 600W solar panels
- Total recommended solar array: 4,200W
- Pump power: 3000W / 4.0HP
Actual system performance may vary depending on sunlight conditions, borehole depth, installation design and other site conditions.
1.5-Inch Water Outlet
The 1.5-inch outlet provides a practical connection for water delivery pipes used in agricultural, domestic and commercial water systems.
Ideal Applications
The 4SDS5-3000W AD pump is suitable for:
- Deep borehole water pumping
- Farm irrigation
- Livestock water supply
- Filling elevated water tanks
- Domestic water supply
- Commercial water systems
- Off-grid solar water pumping
- Agricultural water projects
Product Specifications
Model: 4SDS5-3000W AD
Pump Type: AC/DC Hybrid Submersible Water Pump
Rated Power: 3000W
Horsepower: 4.0HP
Maximum Head: 285m
Working Head Range: 0–211m
Outlet Size: 1.5 inches
Recommended Solar Panels: 7 × 600W
Recommended Solar Array: 4,200W
Installation: Submersible / Borehole
Power Source: AC/DC Hybrid
Why Choose This Pump?
The 4HP AC/DC solar submersible pump combines high-head pumping capability with flexible power options. Its 285-metre maximum head makes it particularly suitable for deep-water applications where smaller solar pumps may not provide sufficient pumping height.
For the best performance, the pump should be correctly matched to the borehole depth, required pumping head, pipe size, water demand and available solar capacity before installation.
