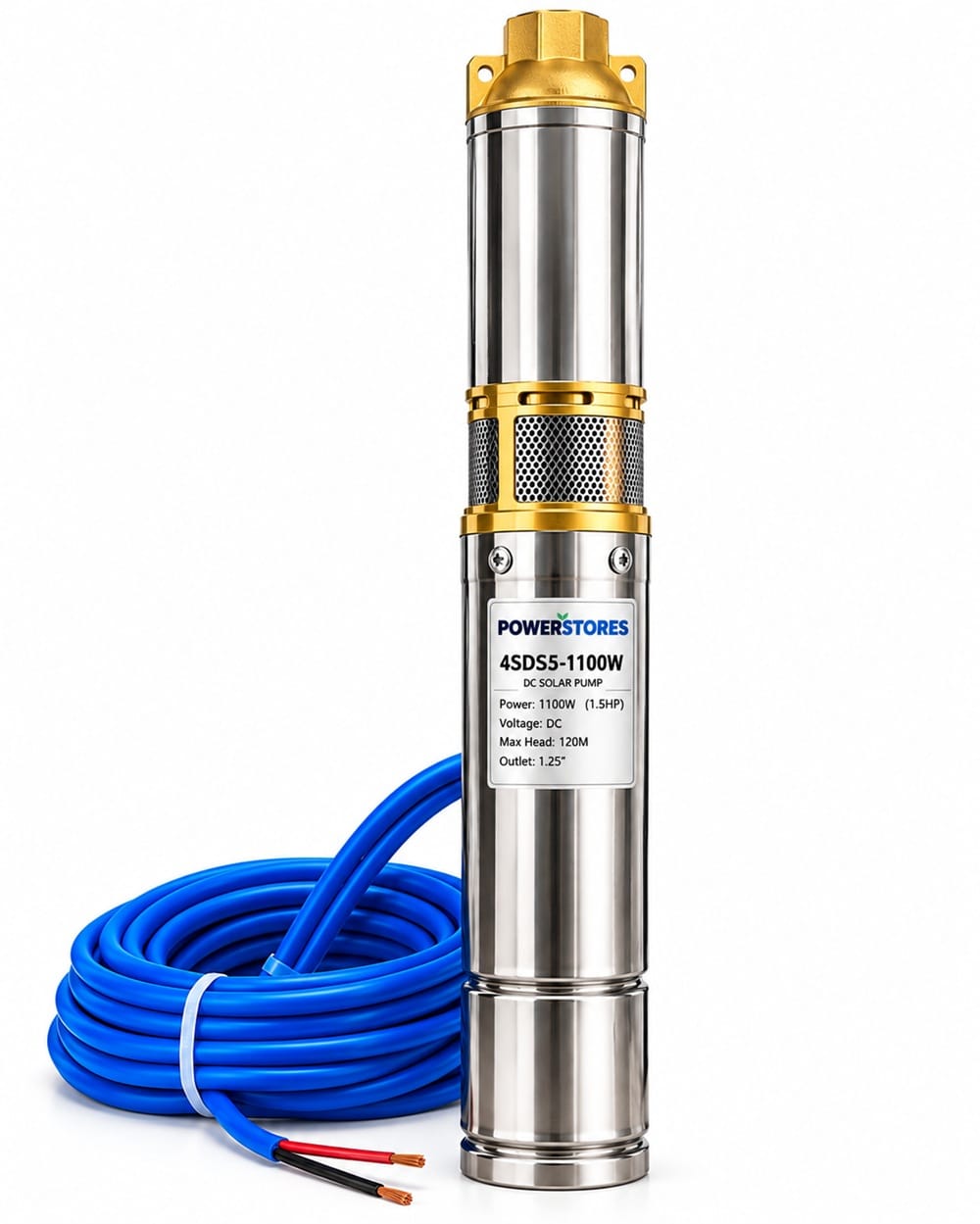

1100W DC Solar Submersible Water Pump 1.5HP – 120M Head
The 1100W DC Solar Submersible Water Pump 1.5HP is designed for deep boreholes and off-grid water pumping. It uses solar energy to pump water without depending on grid electricity.
The pump has a maximum head of 120 metres. Therefore, it is suitable for farms, homes, livestock projects and irrigation systems.
Powerful 1.5HP Solar Water Pump
This solar pump has an 1100W (1.5HP) DC motor. It provides reliable water pumping when connected to the correct solar panels.
The recommended setup is 3 × 550W solar panels. This provides a total solar capacity of about 1,650W.
Maximum Head of 120 Metres
The pump can achieve a maximum head of 120 metres.
Its recommended working head is 0–89 metres. As a result, it is a good option for deep boreholes and other demanding water pumping applications.
1.25-Inch Water Outlet
The pump has a 1.25-inch outlet. This allows it to connect to suitable water delivery pipes.
Using the correct pipe size helps reduce pressure loss. It can also improve the overall performance of the pumping system.
Suitable Applications
This 1.5HP solar submersible pump can be used for:
- Borehole water pumping
- Farm irrigation
- Livestock watering
- Domestic water supply
- Filling elevated water tanks
- Off-grid water systems
- Agricultural projects
Solar Panel Requirements
For good performance, use the recommended solar panel configuration.
Recommended panels: 3 × 550W
Total solar capacity: 1,650W
Solar output changes during the day. Therefore, actual pump performance may depend on sunlight, pumping depth and installation conditions.
Product Specifications
Model: 4SDS5-1100W
Pump Type: DC Solar Submersible Water Pump
Power: 1100W
Horsepower: 1.5HP
Outlet Size: 1.25 inches
Maximum Head: 120 metres
Working Head: 0–89 metres
Solar Panels: 3 × 550W
Total Solar Capacity: 1,650W
Why Buy This Solar Pump?
This 1100W DC solar submersible water pump offers a simple solution for pumping water using solar energy.
It is especially useful in areas with limited access to electricity. In addition, using solar power can reduce the cost of running a borehole pump.
The 120-metre maximum head also makes the pump suitable for deeper water sources.
Installation
Correct installation is important for good pump performance.
The installer should consider the borehole depth, pumping head, pipe size and solar panel capacity. Professional installation is recommended for the best results.
